DS-1M
Description

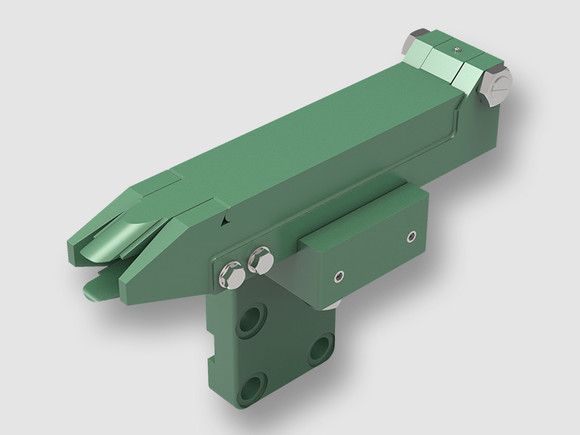

The DS-1M delivery guide is specifically designed for ‘High-Speed’ Wire Rod Block applications. A positive ‘break-out’ feature ensures a safe, reliable release of material during cobble conditions preventing excessive heat from affecting the tungsten carbide or hard metal roll rings.
Guide Features
- Cast stainless or carbon steel guide support bracket.
- Ductile iron stripper guide parts.
- Replaceable wear inserts.
- Fully adjustable for maximum to minimum roll cylinder diameters.
- Positive, adjustable, release spring pressures.
- Stainless steel pressure screws and springs.
- Through the block cooling system.
