RE-FRS

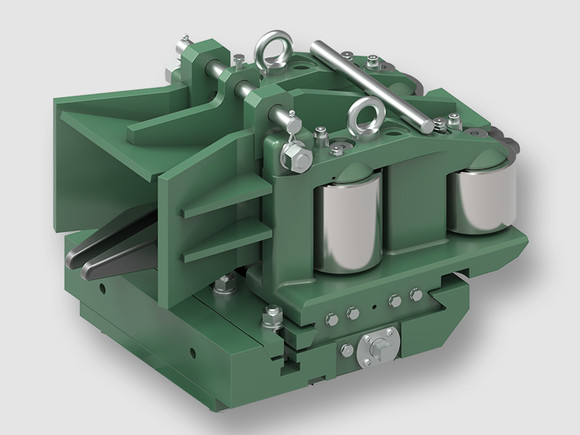

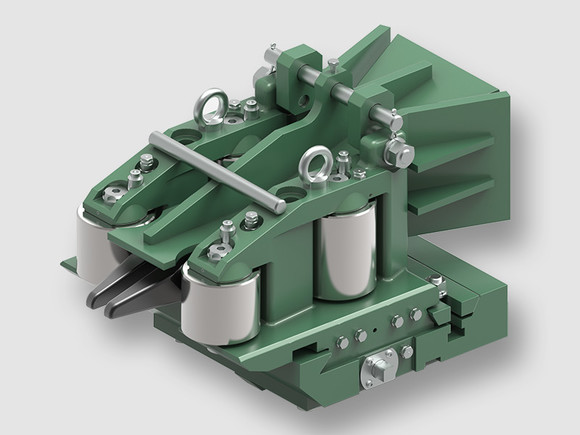

This guide is used for the accurate guidance of flat, near-flat and special shapes. The front rollers are reduced in height to allow a close proximity to the receiving roll pass. Inserts are fitted into the nose of the guide to ensure accurate entry into the receiving pass. Guide shoes are supplied with either a flat or shaped profile. This guide is essential for the accurate positioning of sections and the “bullhead” flat into the first forming pass of most structural shapes.

• Open top design for easy overhead observation.
• Optional top cover for product control.
• Single point simultaneous adjustment to each roller holder/side guide.
• Accurate control of angles, channels and flat products.
• Fabricated steel or cast SG iron guide shoes, formed as necessary, to receive the guided product.
• Operating parts shielded against ingress of mill scale.
• Integral mill scale wash down ports.
• Nitrided steel wear parts for long life.
• High capacity taper roller bearings.
• Wear resistant cast guide body.
